Nano-second Pulse EDFA


Amonics' Pulse EDFA is designed for amplifying optical short pulse to high pulse energy level. Amonics’ engineers have a lot of knowledge in designing pulse optical amplifier, especially handling the nonlinearity in optical fiber due to high pulse peak power of the optical short pulse. We can design custom pulsed EDFA for different applications, such as fiber optic sensing and free space optical sensing.Our pulse EDFA has been widely used in industrial fiber laser based Lidar systems for wind velocity detection.

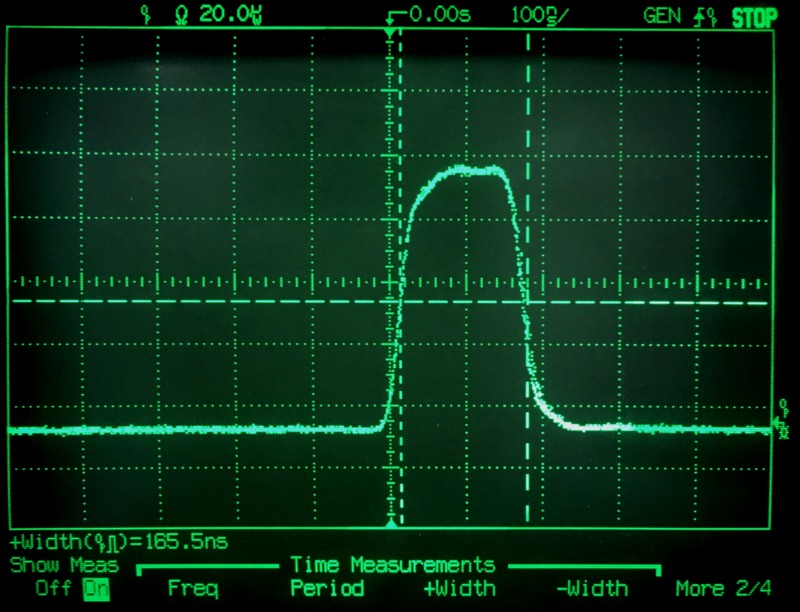

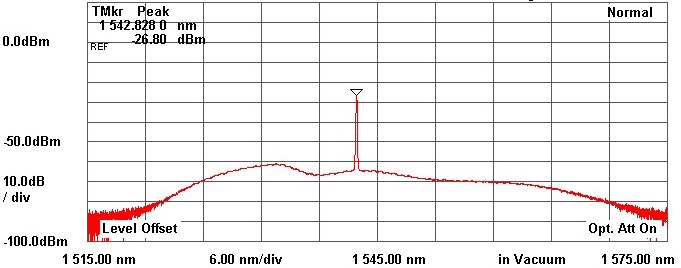

Nanosecond Pulse Amplifier Specifications:

AEDFA-NS AEDFA-PM-NS
Operating wavelength Typ. 1540 to 1560nm Typ. 1540 to 1560nm
Pulse Width Typ. 10ns - 1000ns Typ. 10ns - 1000ns
Saturated Output Power up to (at 10mW peak input power) Typ. 2W Typ. 2W
Pulse peak power up to (No distortion) Typ. 1kW Typ. 1kW
Input Signal Peak Level Typ. 10dBm Typ. 10dBm
Pulse Repetition Rate Typ. 100KHz to 100MHz Typ. 100KHz to 100MHz
Input / Output isolation Min. 30dB Min. 30dB
Polarization dependent gain Typ. 0.3dB, Max. 0.5dB NA
Polarization mode dispersion Typ. 0.3dB, Max. 0.5ps NA
Polarization Extinction Ratio NA Typ. 23dB, Min. 20dB
Optical Fiber LMA 25/300GDF PM LMA 25/300GDF
Different output power models are available upon request

10ns Pulse Amplifier Specifications:

AEDFA-NS-10 AEDFA-PM-NS-10
Operating wavelength Typ. 1540 to 1560nm Typ. 1540 to 1560nm
Pulse Width Typ. 5ns - 10ns Typ. 5ns - 10ns
Saturated Output Power up to (at 10mW peak input power) Typ. 10W Typ. 10W
Pulse peak power up to (No distortion) Typ. 10kW Typ. 10kW
Input Signal Peak Level Typ. 10dBm Typ. 10dBm
Pulse Repetition Rate Typ. 100KHz to 100MHz Typ. 100KHz to 100MHz
Input / Output isolation Min. 30dB Min. 30dB
Polarization dependent gain Typ. 0.3dB, Max. 0.5dB NA
Polarization mode dispersion Typ. 0.3dB, Max. 0.5ps NA
Polarization Extinction Ratio NA Typ. 23dB, Min. 20dB
Optical Fiber LMA 25/300GDF PM LMA 25/300GDF
Different output power models are available upon request

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H)
Control Keylock switch, Pump laser current
LCD Display Output power, Pump laser current, Input power (Optional)
Computer Interface RS232 (Labview control software & connection cable included) / Ethernet (Optional)
Protection Pump laser over heat warning
Optical Connector FC/APC, collimator or bare fiber (No output connectors for output power >2W)

Options

Optical bandpass filter

Ordering Information

Product Code
AEDFA(-PM)-NS-wwww-xxxx-yy-B-zz
www : Pulse Width in ns
xx: Repetition Rate in kHz
yy: Average Output Power in dBm
zz: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, CL for collimator, NC for bare fiber


Key Features

High output power
High gain
Wide operation rage
Highly reliable and durable
