Expanding Optical Amplification Beyond C/L Bands: O-, E-, and S-Band BDFA Breakthroughs for Full-Spectrum Networks

The Next Frontier in Optical Communication

As global data traffic continues to surge, the traditional C and L bands can no longer meet the ever-growing bandwidth demand. The industry is entering a new era where full-spectrum optical amplification—covering O, E, S, C, and L bands—is becoming essential for high-capacity, flexible, and scalable optical networks.

The challenge is clear: how can we extend usable optical windows while maintaining low noise, high gain, and long-term reliability? Recent breakthroughs in bismuth-doped fiber amplifier (BDFA) technology are offering practical answers.

O-Band Amplification — From Partial to Full Coverage

The O-band (1260–1360 nm) has long been seen as difficult to amplify efficiently. The lack of suitable gain media and stable device design limited its use in high-speed or short-reach optical links.

Yet the O-band holds immense value—it enables low-dispersion, high-speed communication, making it ideal for future data center interconnects and optical computing links.

Amonics’ latest O-band BDFA achieves continuous amplification across the entire O-band, maintaining consistent gain and noise performance across a 100 nm span.

This advancement enables researchers and system developers to fully exploit the O-band spectrum—without being confined to narrow sub-ranges.

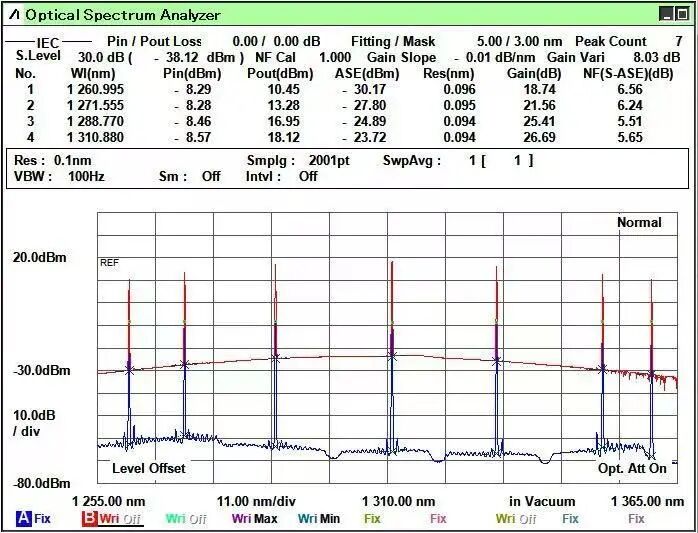

_{O Band DWDM BDFA Spectrum}

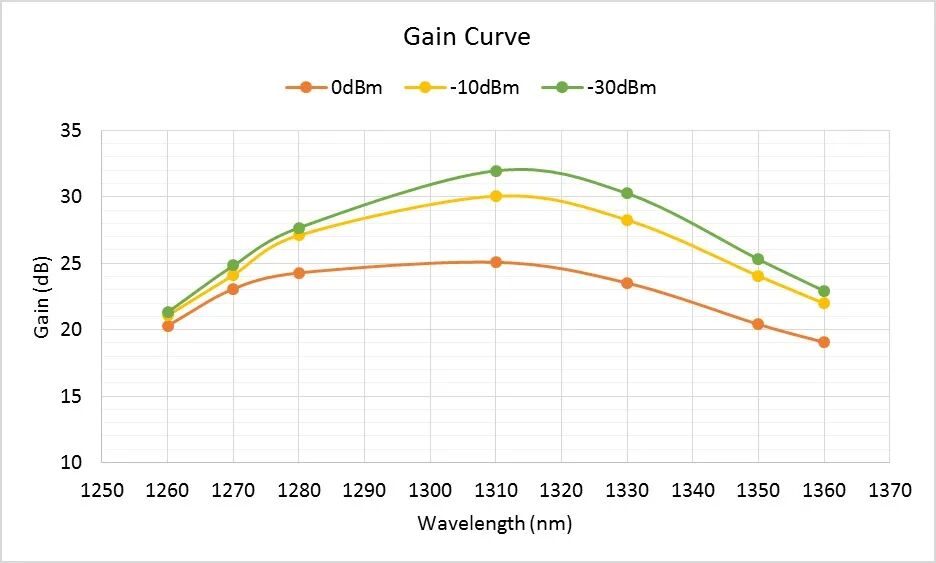

_{O Band BDFA（Single Channel）Gain Curve}

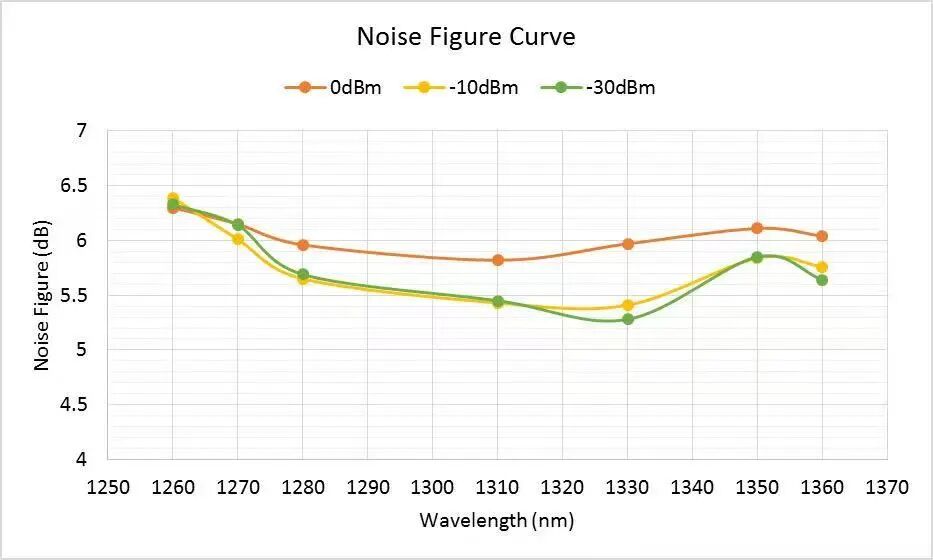

_{O Band BDFA （Single Channel） Noise Figure Curve}

Technical highlight: The amplifier provides stable, broadband gain and low noise figure across the full O-band range, verified through long-term burn-in testing and spectral uniformity validation.

E-Band Amplification — Bridging the Spectral Gap

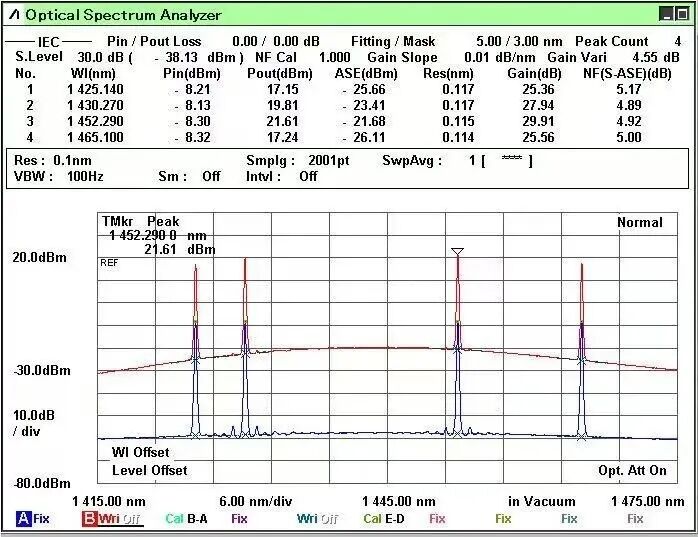

_{E Band DWDM BDFA Spectrum}

The E-band (1360–1460 nm) sits between the O and S bands, often regarded as a “transition region” with complex fiber attenuation characteristics. However, this region offers significant untapped potential for expanding fiber capacity.

The new E-band BDFA developed by Amonics demonstrates stable gain performance across this spectrum, successfully bridging the O-E-S transition.

This milestone brings us closer to seamless O-E-S-C-L full-spectrum optical amplification, essential for next-generation coherent systems and multi-band DWDM networks.

Insight: With mature C/L band systems already in use, extending into E-band provides a smooth path to expand network bandwidth without major infrastructure changes.

S-Band Amplification — Completing the Spectrum Puzzle

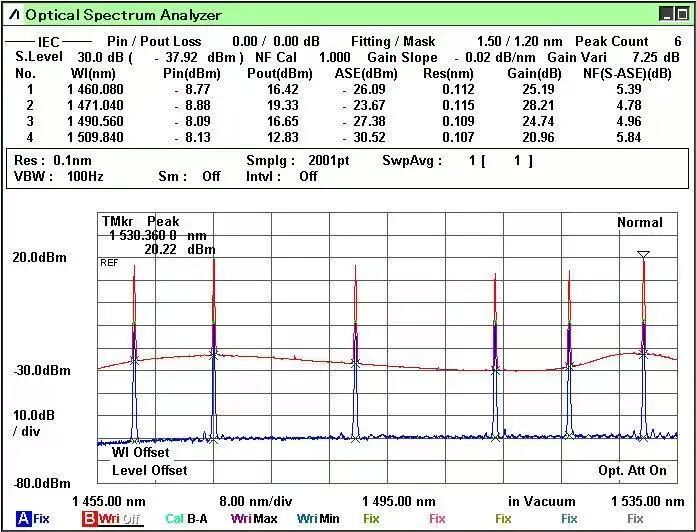

_{S Band DWDM BDFA Spectrum}

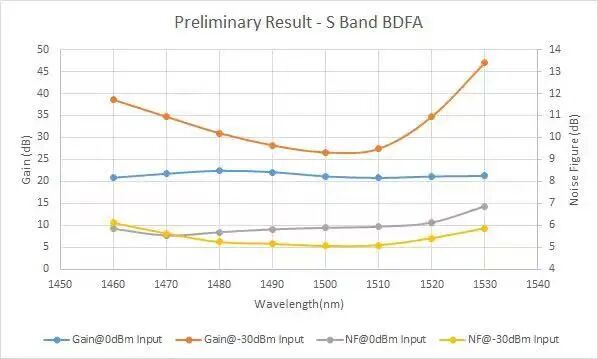

_{S Band BDFA （Single Channel） Gain Curve & Noise Figure}

The S-band (1460–1530 nm) is another critical piece of the puzzle for ultra-broadband optical communication.

Amonics’ S-band BDFA is now commercially available, extending amplifier gain coverage beyond the conventional C/L spectrum and filling the remaining gap for full-band operation.

The amplifier demonstrates low noise, wide dynamic range, and compatibility with DWDM systems, making it well-suited for both research and telecom applications.

When combined, O, E, and S band amplification unlocks the next level of optical network scalability—providing a pathway toward terabit-scale transmission and multi-band optical communication.

From the Lab to Real Deployment

Optical amplification is evolving rapidly—from experimental systems to robust, field-deployable solutions.

In both research and industry, multi-band amplifiers are redefining how we think about fiber capacity:

• Research Impact: O/E/S-band amplification enables full-spectrum transmission testing and next-generation photonic experiments.
• Industrial Value: Data centers, metro networks, and long-haul systems can leverage new wavelength windows to expand capacity without re-fiberizing infrastructure.

Amonics’ Commitment to Optical Innovation

With over 20 years of expertise in optical amplifier and light source design, Amonics (Hong Kong) continues to extend the frontiers of amplification technology—from mature C++/L++ EDFA modules to new-generation BDFA amplifiers spanning O, E, and S bands.

Each amplifier is engineered for real-world reliability, featuring:

• Proven long-term stability through environmental testing and burn-in qualification
• Compact module and rack configurations for OEM and laboratory use
• Custom wavelength gain profiles to support advanced research setups

These developments are more than incremental upgrades—they’re building blocks for the next decade of full-band optical networks.

Conclusion: The Path to Full-Spectrum Optical Communication

The move toward O/E/S/C/L-band optical amplification marks a defining moment in photonics.

It’s not just about increasing capacity; it’s about unlocking the entire potential of the optical fiber.

By advancing BDFA and EDFA technologies across new wavelength windows, the industry is moving closer to a truly full-spectrum optical communication era—from lab-scale experiments to global-scale deployment.
