Space-Qualified EDFA for CubeSat
In 2026, a leading aerospace company and a renowned research institute successfully demonstrated free‑space optical communication between a LEO satellite and ground station using our space-qualified EDFA for CubeSat.

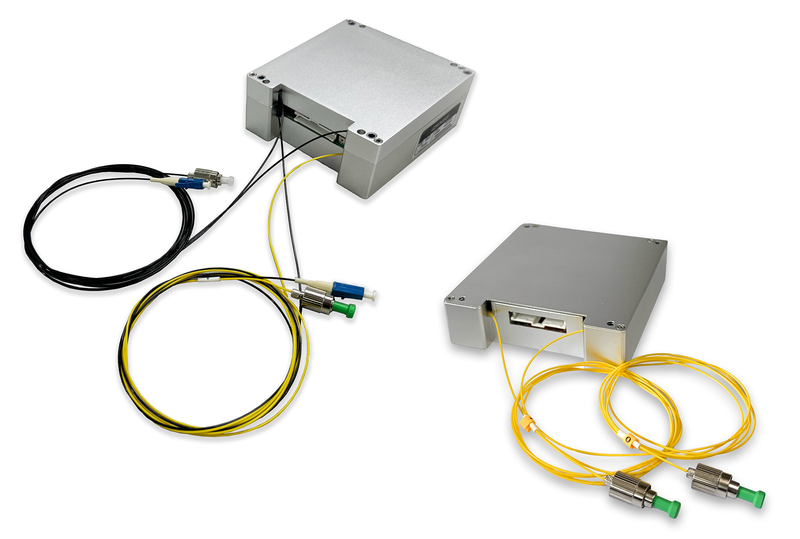

Available in both 2‑in‑1 (Pre‑amplifier + Booster) and Booster‑only versions, these space‑qualified modules are miniaturized to meet CubeSat size and weight constraints. Design qualified through rigorous testing, they deliver high output power with optimal efficiency, low noise, and proven reliability—empowering next‑generation optical communication payloads in compact satellite platforms. Optional full space acceptance testing service is available at extra cost.
Pre-Amplifier Specifications
| Value | |
|---|---|
| Input Signal Level | -50 to -10 dBm |
| Small Signal Gain | Min. 40dB @-50dBm input power |
| Optical Output Power | 0.1 mW to 1 mW |
| Operating Wavelength | C band ITU channel (with bandpass filter) |
| Noise Figure | Max. 4.5 dB @-20 dBm input power |
| Input and Output Isolation | Min. 30 dB |
| Return Loss | Min. 45 dB |
| Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB |
| Control Mode | APC |
Booster Specifications
| Value | |
|---|---|
| Input Signal Level | -6 to +10 dBm |
| Saturated Output Power (at 0 dBm input power) | Min. 1.6 W, Typ. 2.0 W @ operation case temp. -20 to +55 °C |
| Saturated Output Power (at 0 dBm input power) | Min. 1.8 W* under thermal vacuum condition, without thermal heat dissipation control |
| Operating Wavelength | 1540 nm to 1565 nm |
| Noise Figure | Typ. 5.0 dB , Max. 5.5 dB @0 dBm input power |
| Input and Output Isolation | Min. 30 dB |
| Return Loss | Min. 45 dB |
| Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB |
| Control Mode | ACC |
* Measured within 8 mins after power on
General Parameters
| unit | value | |
|---|---|---|
| Thermal Vacuum Operation Temperature | °C | -20 to +55 (Case Temp.) (Vacuum pressure between 10⁻⁵ and 10⁻⁶ mBar) |
| Storage Temperature | °C | -40 to +85 |
| Power Consumption (2-in-1 EDFA) | W | Max. 38.4 @12 ± 0.25 VDC |
| Power Consumption (Booster-only EDFA) | W | Max. 20.98 @5 ± 0.1 VDC / 3.3 ± 0.1 VDC |
| Dimensions (2-in-1 EDFA) | mm | 90(W) x 95(D) x 36(H) |
| Dimensions (Booster-only EDFA) | mm | 90(W) x 95(D) x 25(H) |
| Protection | Loss of Input Signal with auto recovery for Booster Amplifier | |
| Optical Connector | FC/APC | |
| Optical Fiber | SMF-28 | |
| Remote Control Port | UART | |
| Qualification Test | Sinusoidal vibration test, Random vibration test, Thermal vacuum test, and Total Ionization Dose (TID) Test |
Ordering Information
| Product Code |
|---|
| 2-in-1 EDFA: AEDFA-PA-BO-aa-SP or Booster-only EDFA: AEDFA-aa-SP-bb |
| aa : Saturated output power in dBm |
| bb : FA for FC/APC |
Applications
Key Features
| 2-in-1 (Rx and Tx) EDFA module |
| Booster (Tx) EDFA module |
| Space-qualified |
| Smallest size & Compatible with CubeSat |
| High output power |
| Low power consumption |
| Cost-effective |
