Emergency Alternative EDFA system


Telecommunication systems are vitally important in our daily lives, even more so during the rescue and recovery processes upon natural disasters, such as the earthquake hitting the east-coast of Japan in 2011. The deadly earthquake rattled the nation coast before unleashing a deadly tsunami that swept away cars, homes and businesses as it touched land. The communication infrastructure was among the victims. Rapid rebuilding of the telecommunication system becomes an absolute priority.

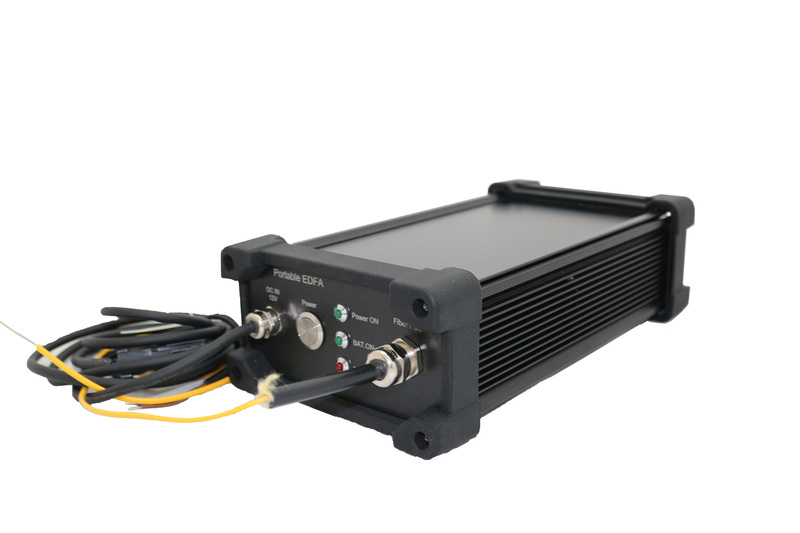

Amonics’ Emergency Alternative EDFA system is a hand-held battery-powered Bi-directional Packet Switching DWDM EDFA module. It is designed for instant reconnection of fractured telecommunication system under emergency conditions. This all-in-one EDFA device features long operating time, lightweight and waterproof (IP68) casing.

Specifications

AEDFA-PKT-DWDM-15 Remarks
Input Power -16 dBm to -3 dBm
Output Power * (@ -3 dBm input signal) Min. +15 dBm
Noise Figure (@ -3 dBm input signal) Max. 5.5 dB

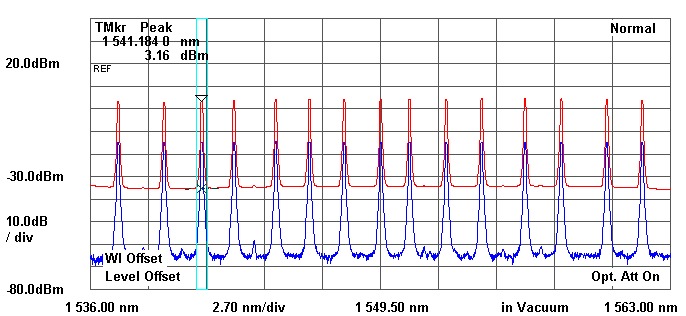

Operating Wavelength 1537.37 nm to 1561.62 nm or other specified wavelength range
Gain Flatness Max. +/- 1.2 dB
Optical Gain (@ -3 dBm Input signal) Min. 18 dB
Gain Excursion Typ. 0.1 dB/ms, Max. +/- 0.2 dB/ms
Input and Output Isolation Min. 30 dB
Polarization Dependent Gain Max. 0.5 dB
Control Mode ACC (Option: APC, AGC)
Other output power models are available upon request
Amonics supplies EDFAs of other types, such as pre-amp or Booster
EDFAs of other wavelength ranges, such as L-band, are available. They may come with customized casing size, optical performance, control mode and power supply requirements.

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VDC 12V
Battery Life hr Max. 8
Dimensions mm 156.3(W) x 275(D) x 81.3(H) without PVC cover
Optical Connector LC/UPC
Optical Fiber SMF-28

Ordering Information

Product Code
AEDFA-PKT-DWDM-15-EMER-LC
Please contact Amonics for detailed specifications

Key Features

Independent power supply with cell phone batteries
168 hours standalone and continuous operation
Intelligent battery management
Bidirectional EDFA system
Light weight
Waterproof casing
